Product Specifications

10/2024 (continuously being updated)

General Specification

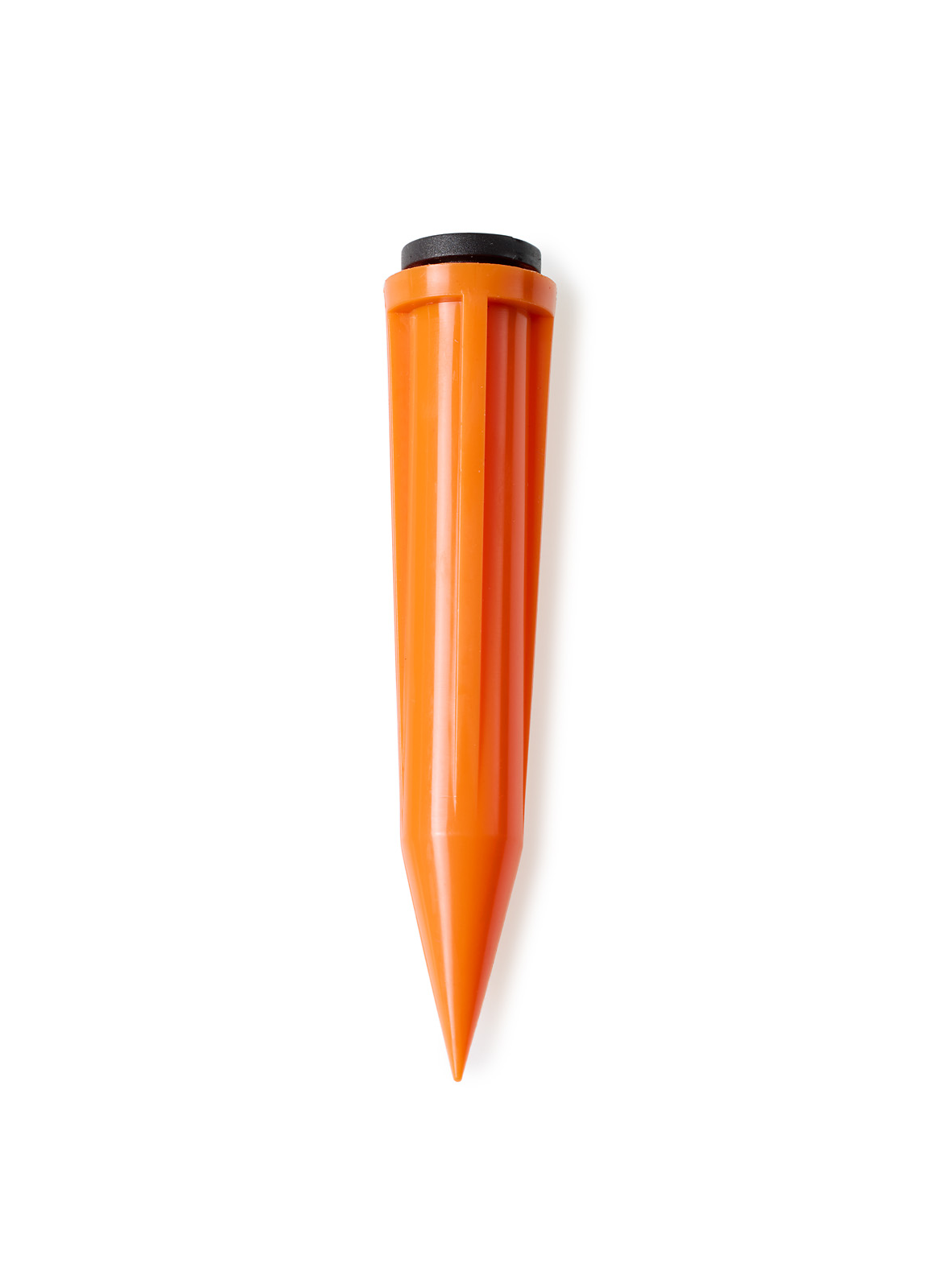

Marker type: Vertical peg, alt. horizontal with duct termination
Operational mode: Passive
Detection range: >1,5m, 1,8m typically
Housing: PP, glass fibre reinforced
Operating temp: -20° - +40°C
Storage Temp: -40° - +50°C
IEC environment class: IP 68
Estimated lifetime: >30 years
Compliance: RoHS, Reach, ACS
Sustainability and climate action: AEMT follows the ICC act for sustainable Environment.
Country of origin: Sweden

Index	Frequency (kHz)	Article nr	Colour			Comment
			Housing	Lid	Duct / wheel / Termination

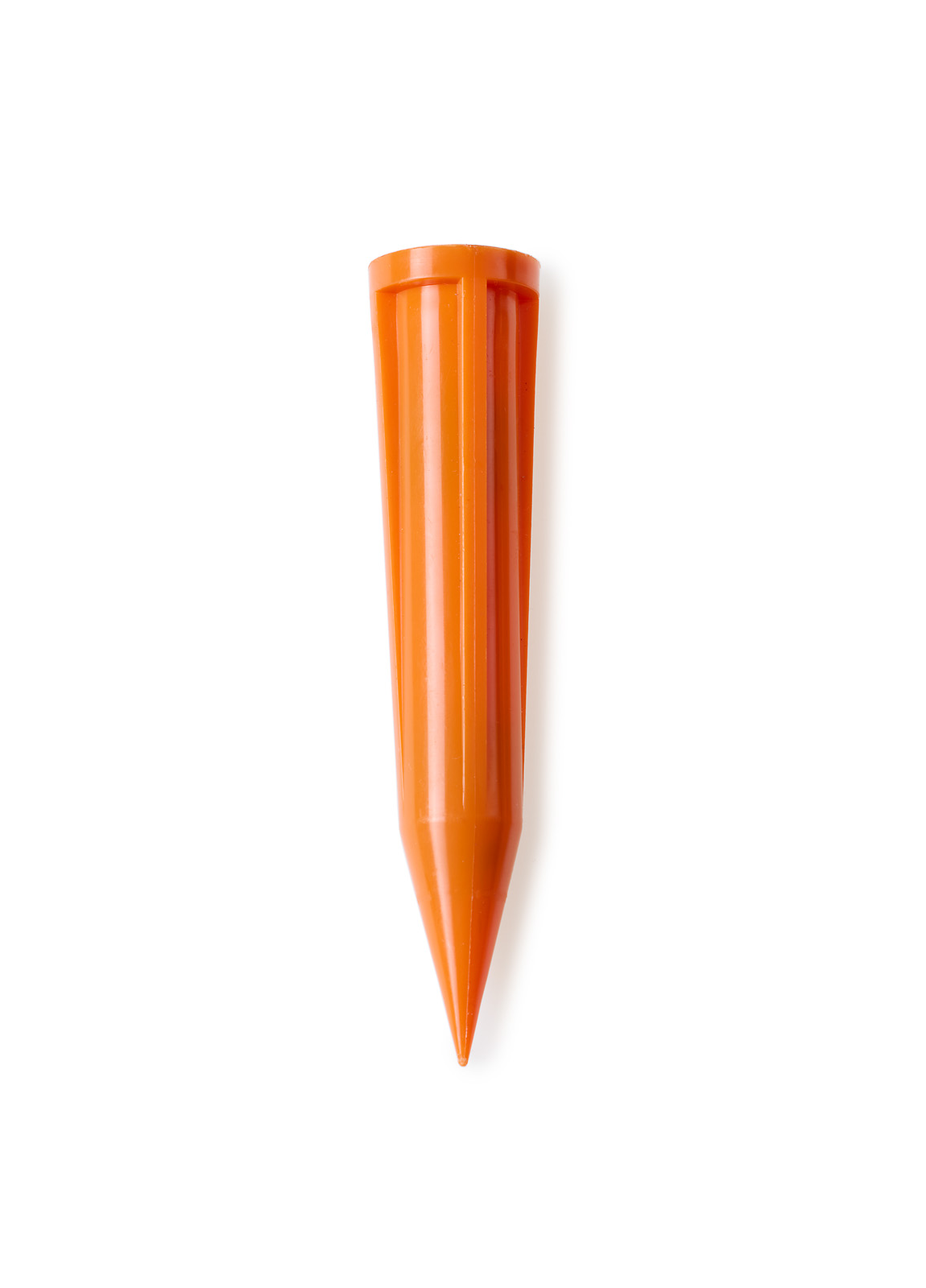

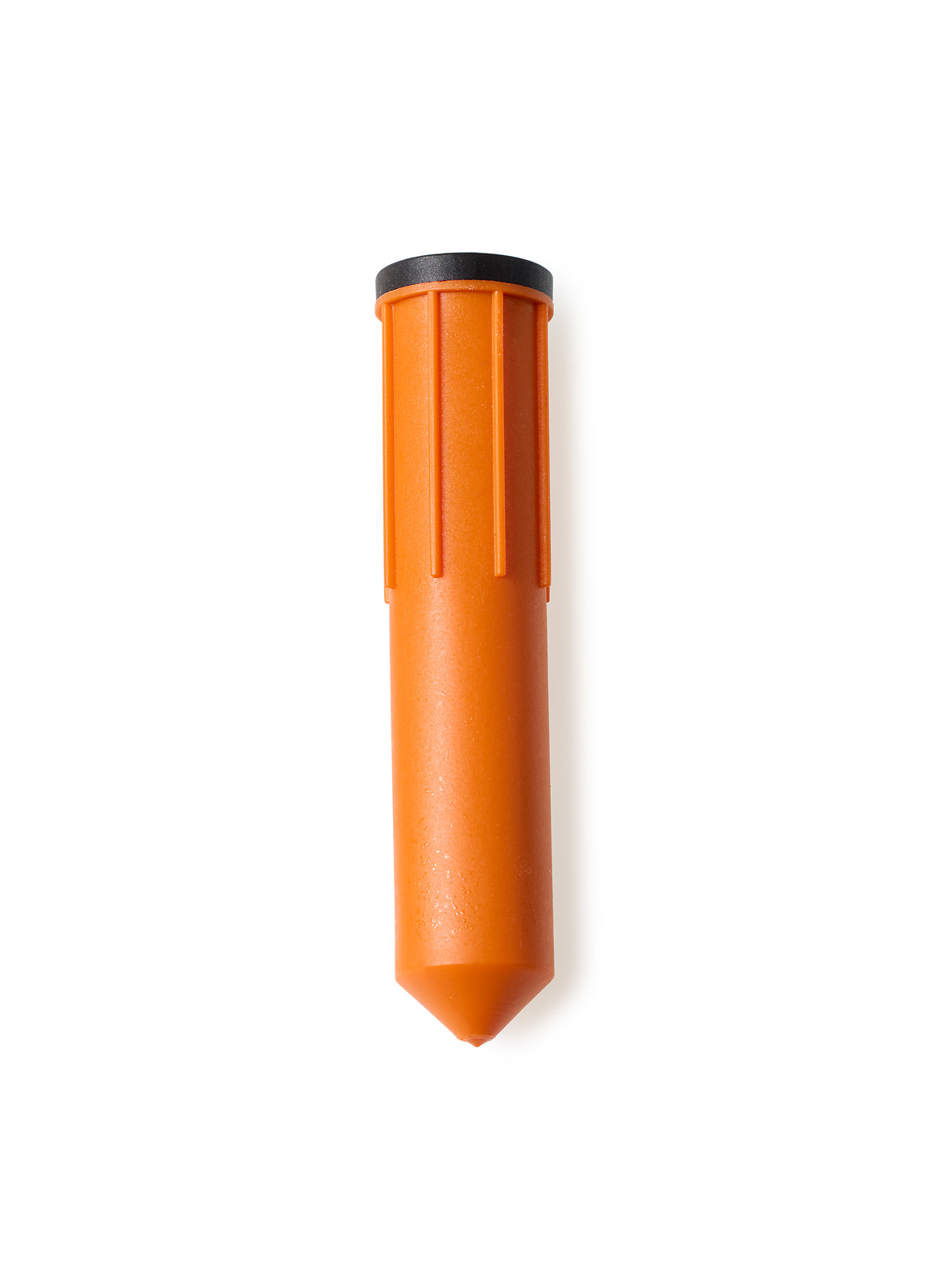

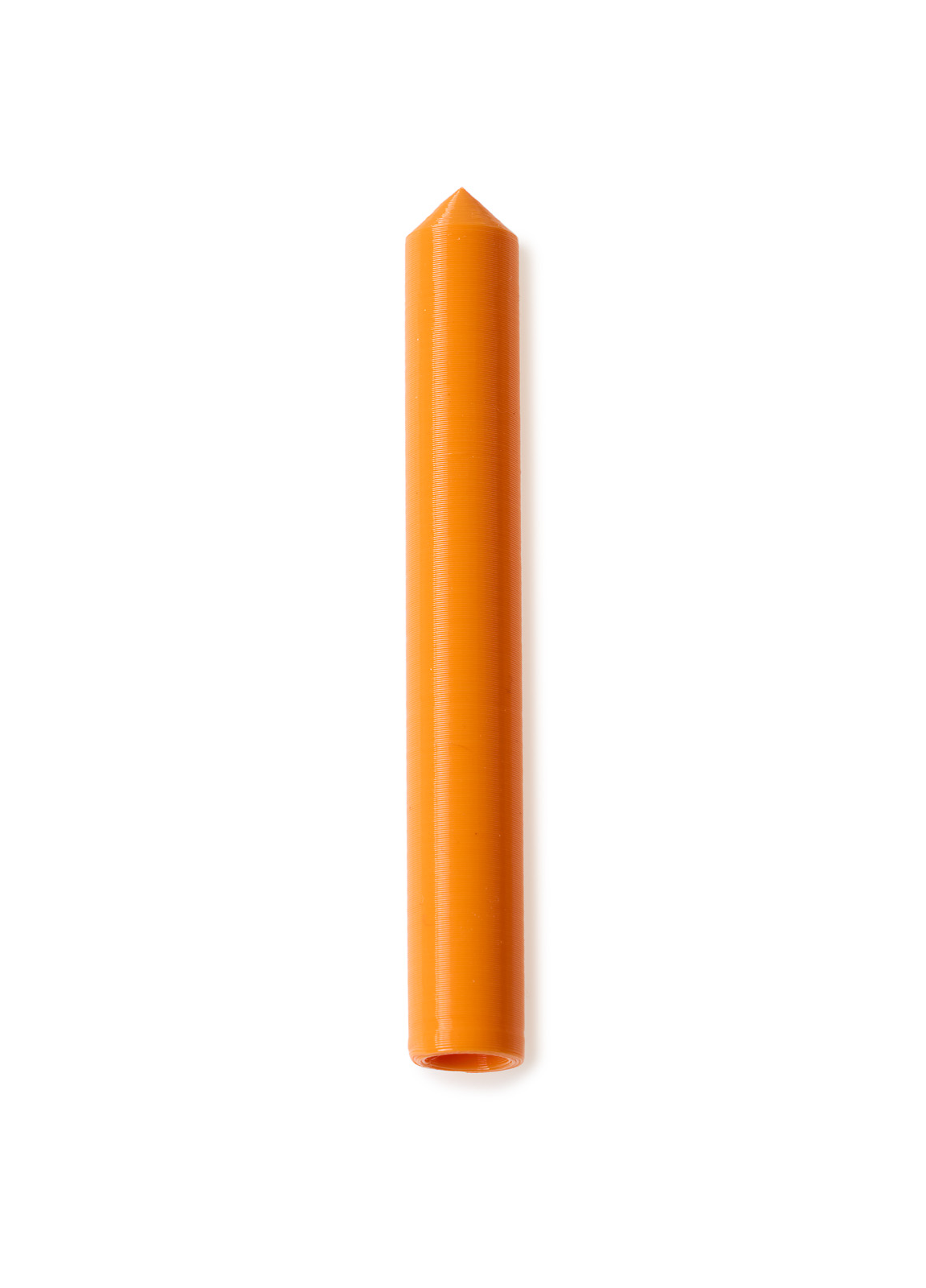

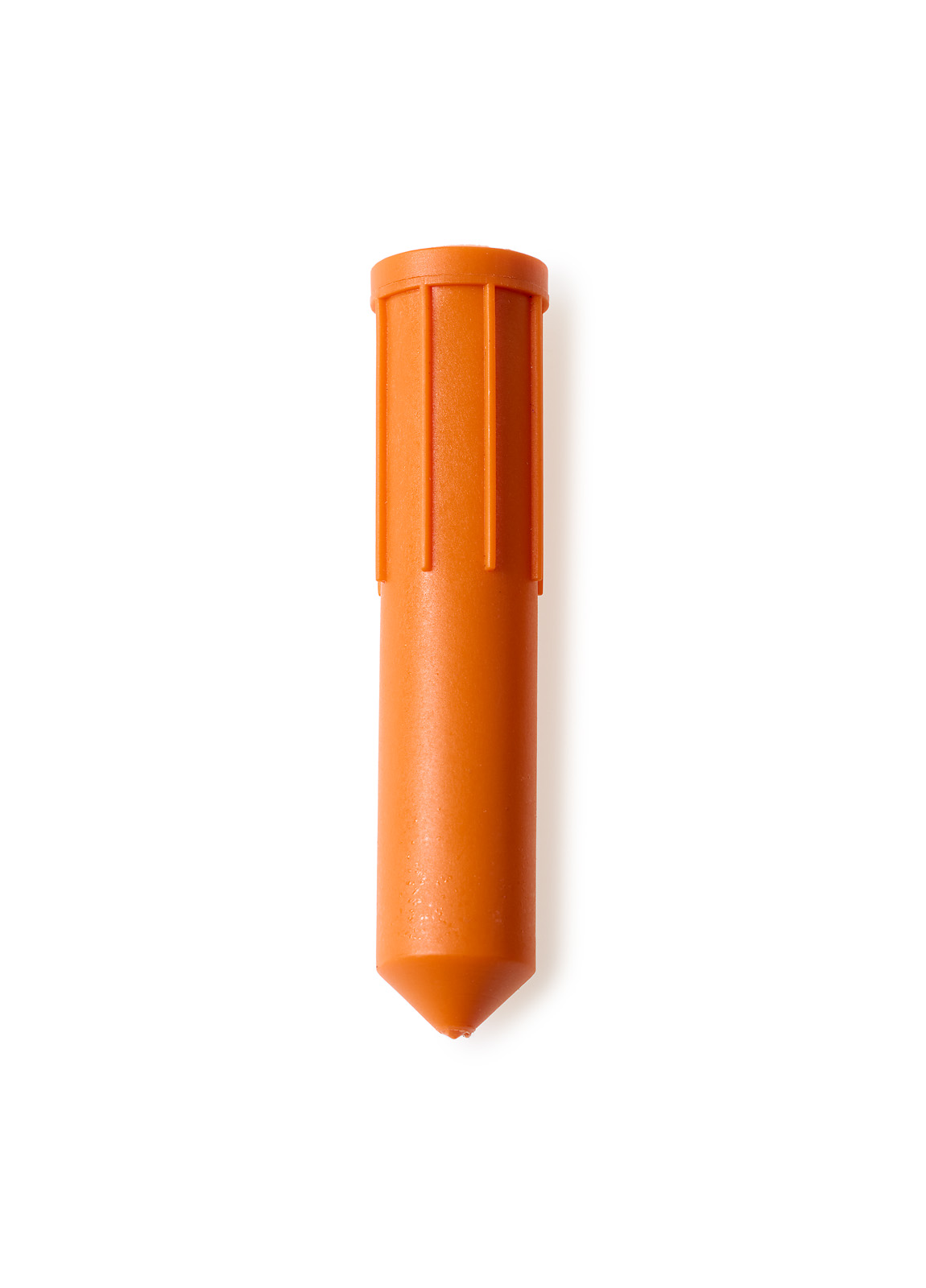

1	101.4	1. 101. O	Orange	Orange	-	Telecom marker
2	92	1. 92 O/B	Orange	Black	-	Opto marker
3	101.4	2. 101. O	Orange	Orange	Orange	Telecom / Accessory wheel*
4	92	2. 92 O/B	Orange	Black	Orange	Opto / Accessory wheel*

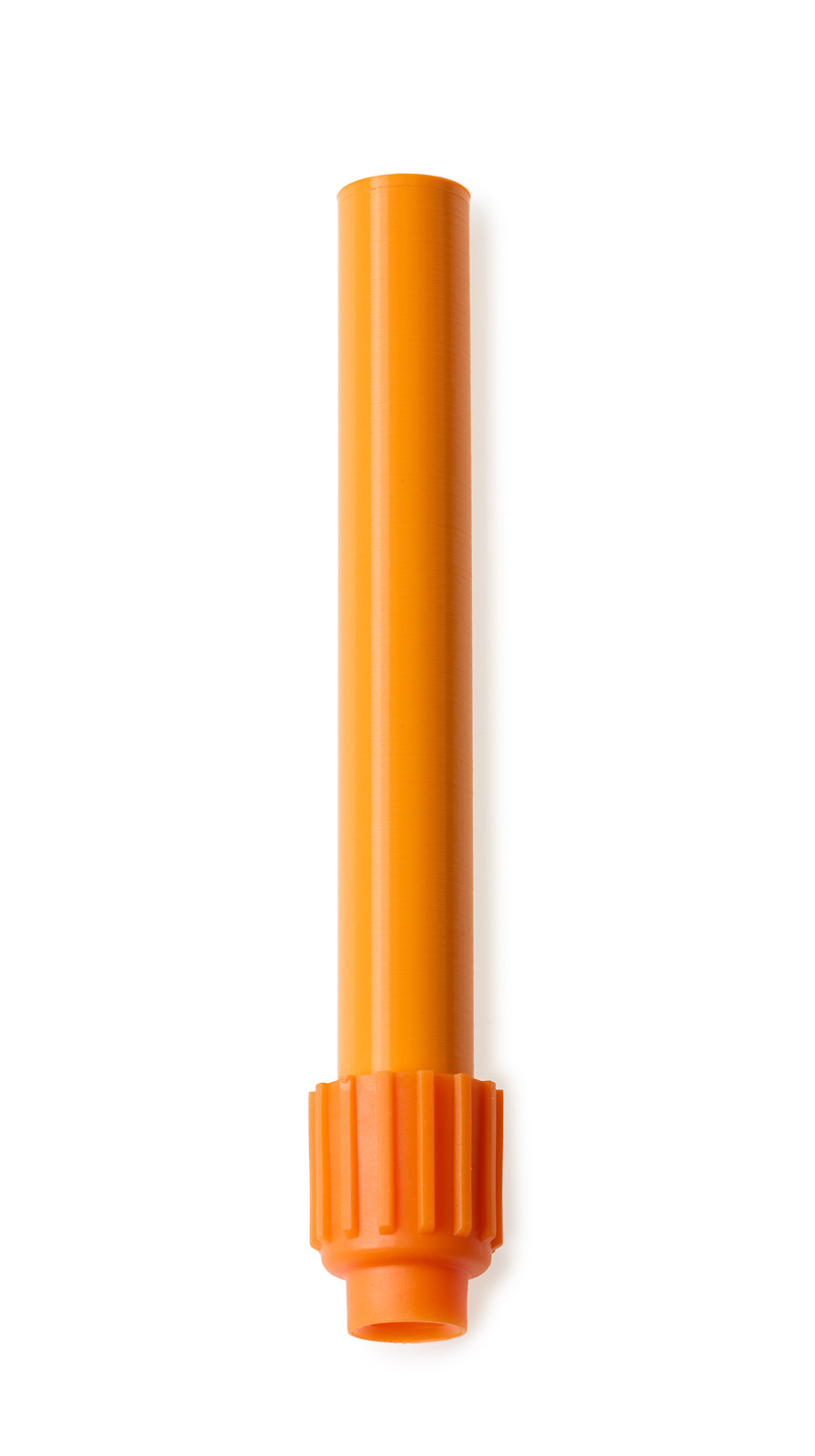

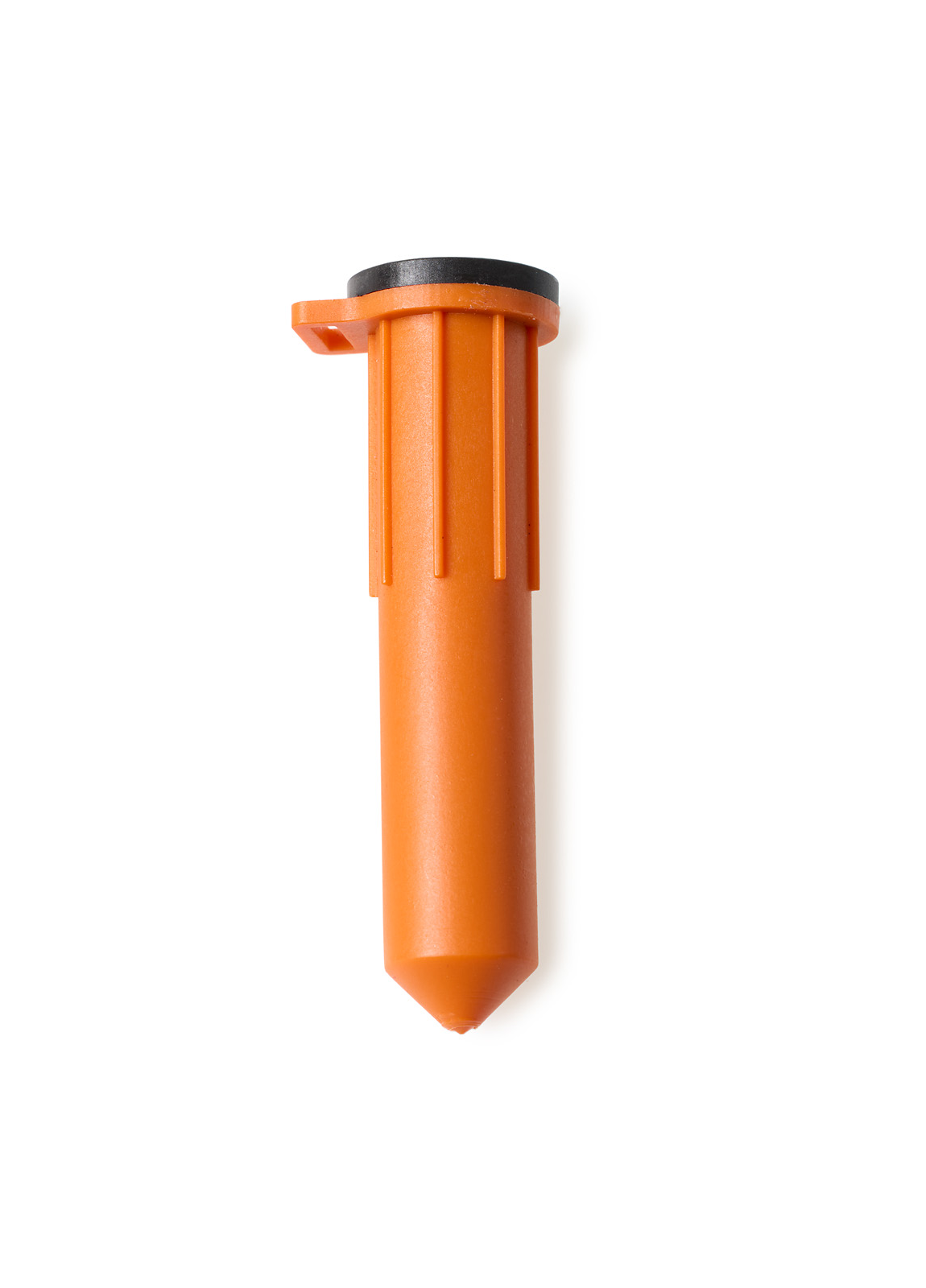

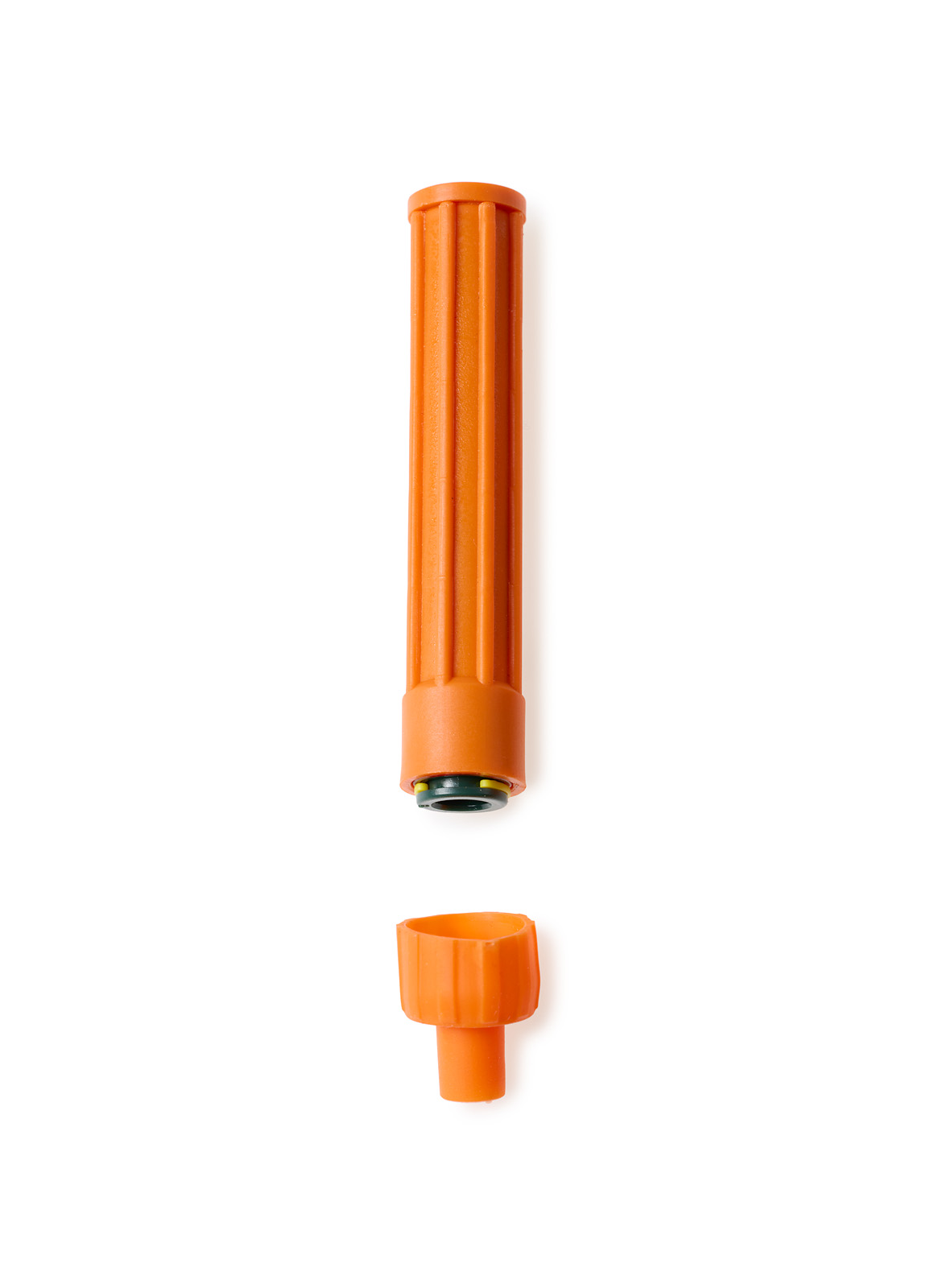

5	101.4	3. 101. O	Orange	Orange	-	Telecom / Duct fastening

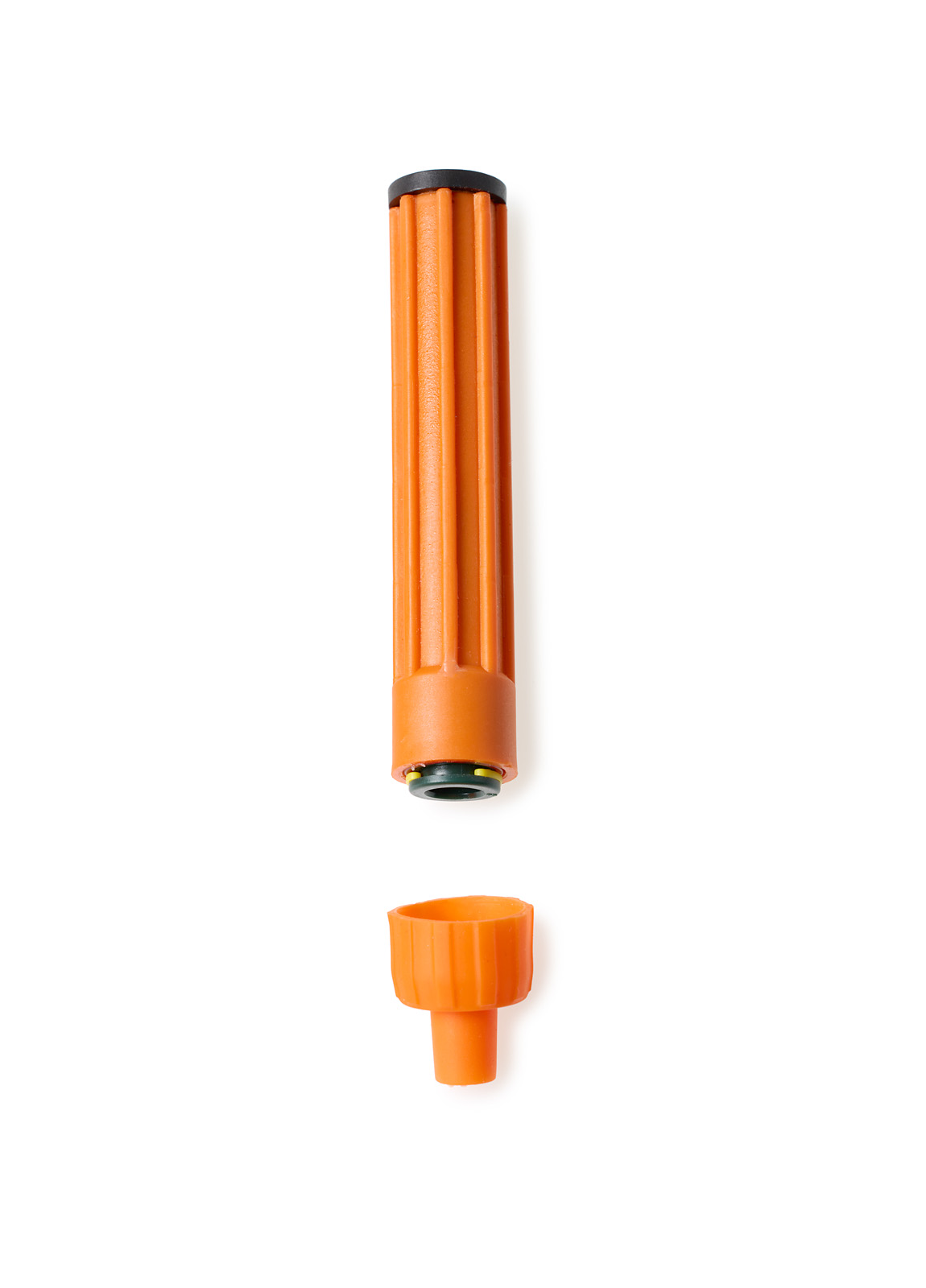

6	92	3. 92 O/B	Orange	Black	-	Opto /Duct fastening

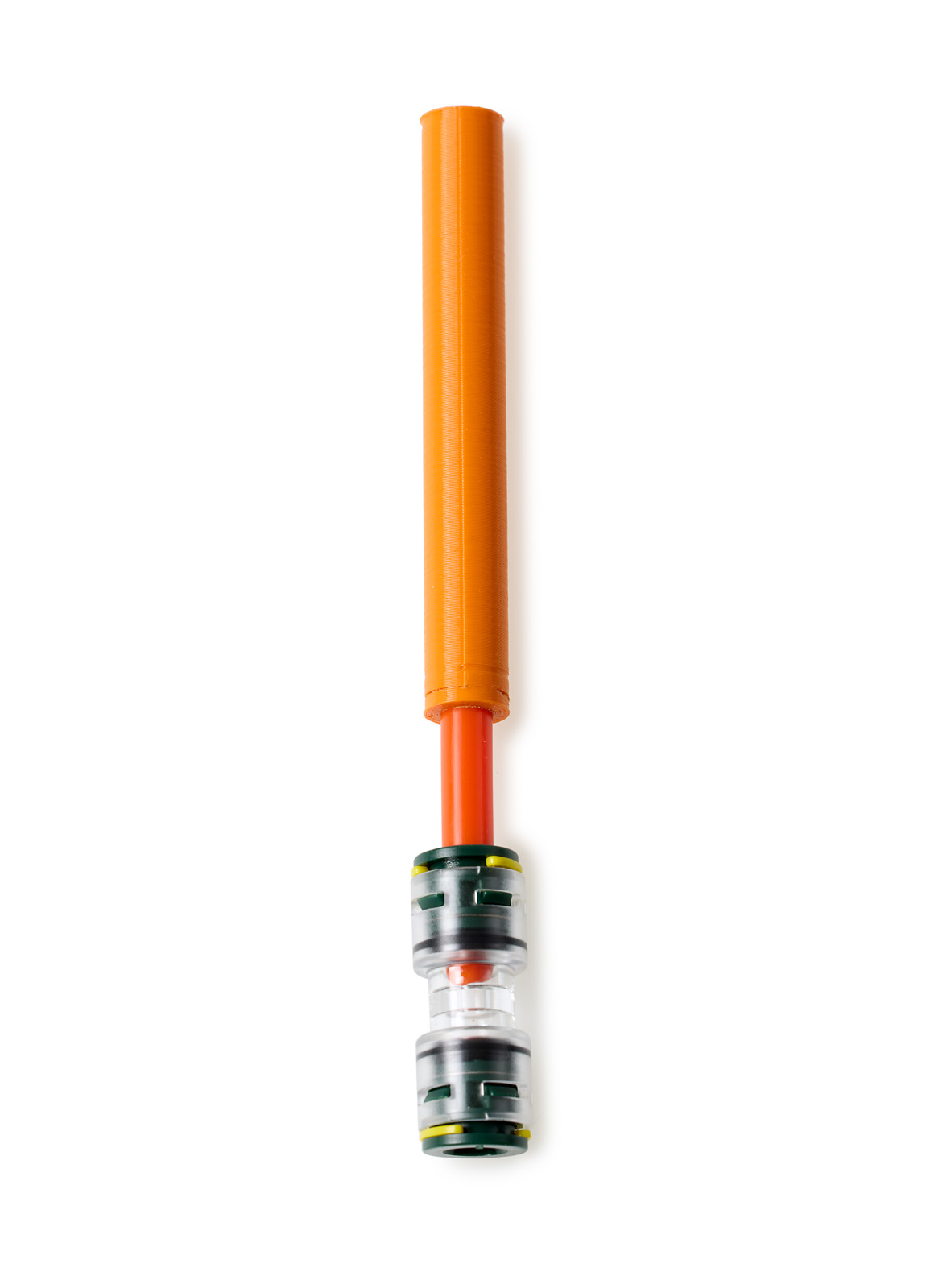

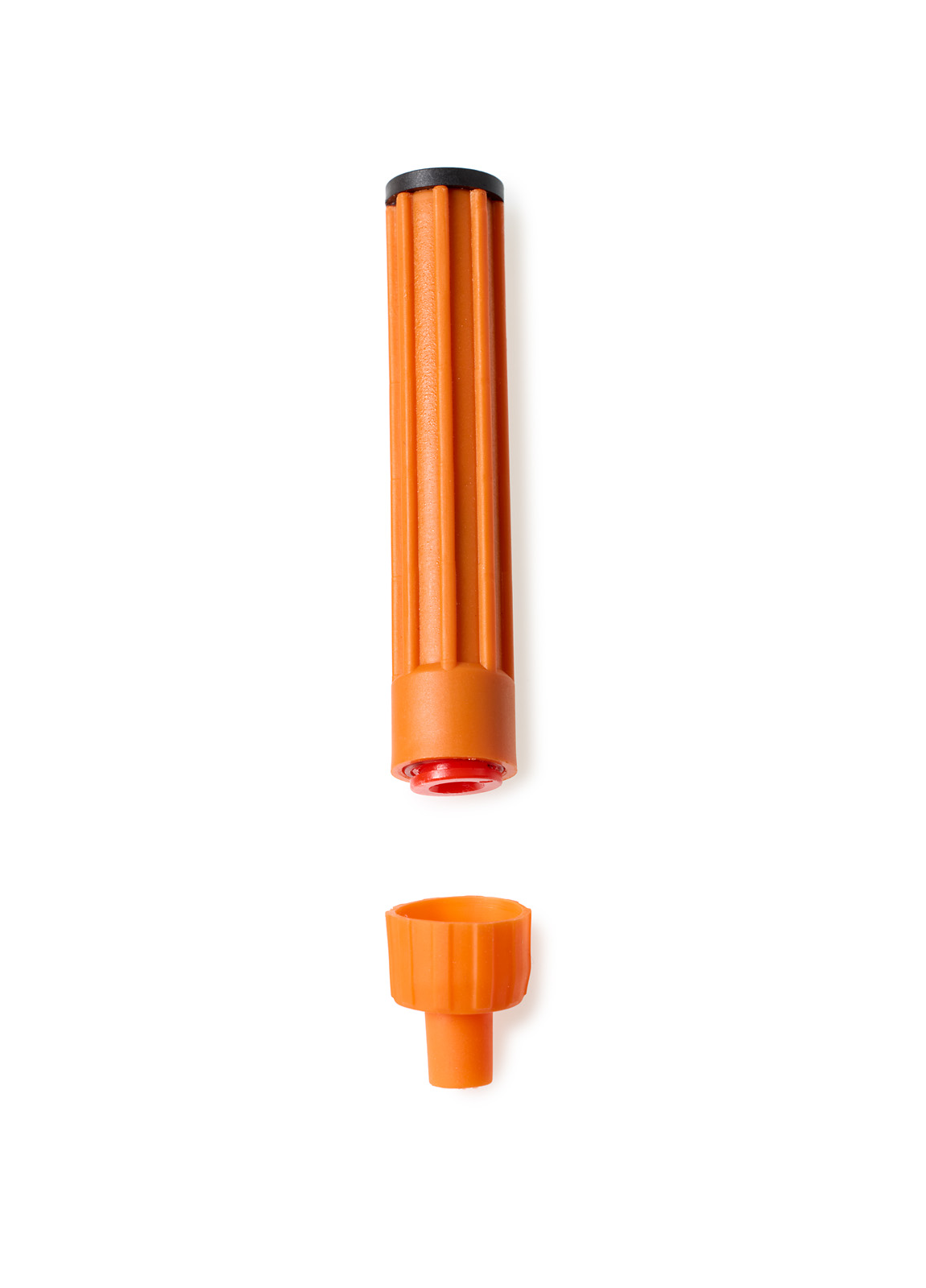

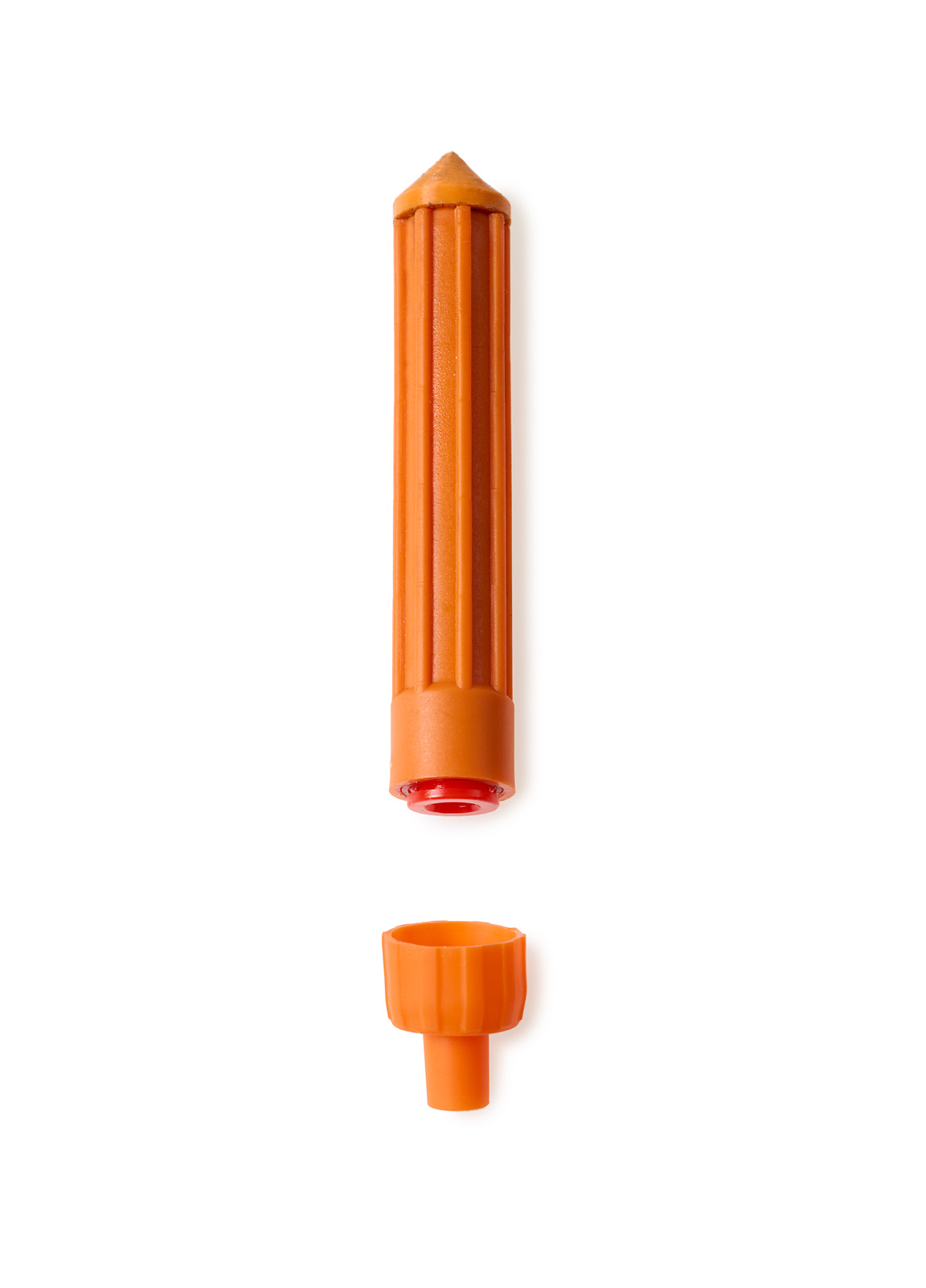

7	101.4	T. 101-7	Orange	Orange	Red	Termination for 7mm duct
8	92	T. 92-7	Orange	Black	Red	Termination for 7mm duct
9	101.4	T. 101-8	Orange	Orange	Green	Termination for 8mm duct
10	92	T. 92-8	Orange	Black	Green	Termination for 8mm duct

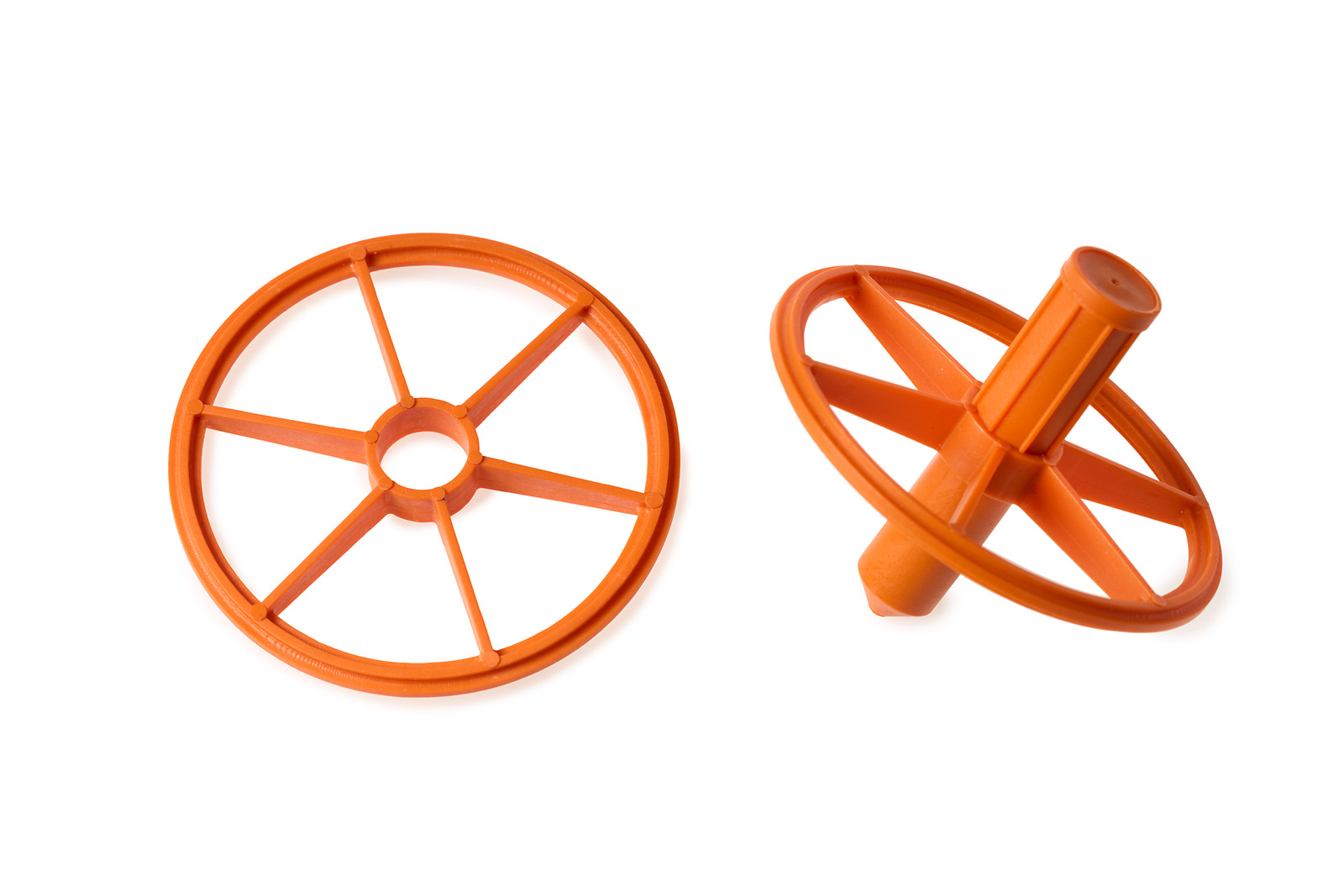

* A wheel (separate) can be mounted on the marker to achieve a 45° standing angle.

Marking: The markers are unmarked.

Colour code indicates the application type, Tele or Opto.
Position 1-10, 10 pcs/plastic bag, and 500 pcs/carton box, plastic bag and carton box are marked with, type, Annahill Electronic Marker Tech AB name and logotype. MOQ: 1 carton box weight ca 15kg.
The option exists to mark individual marker bag and packaging with customer type number, name and logotype.
